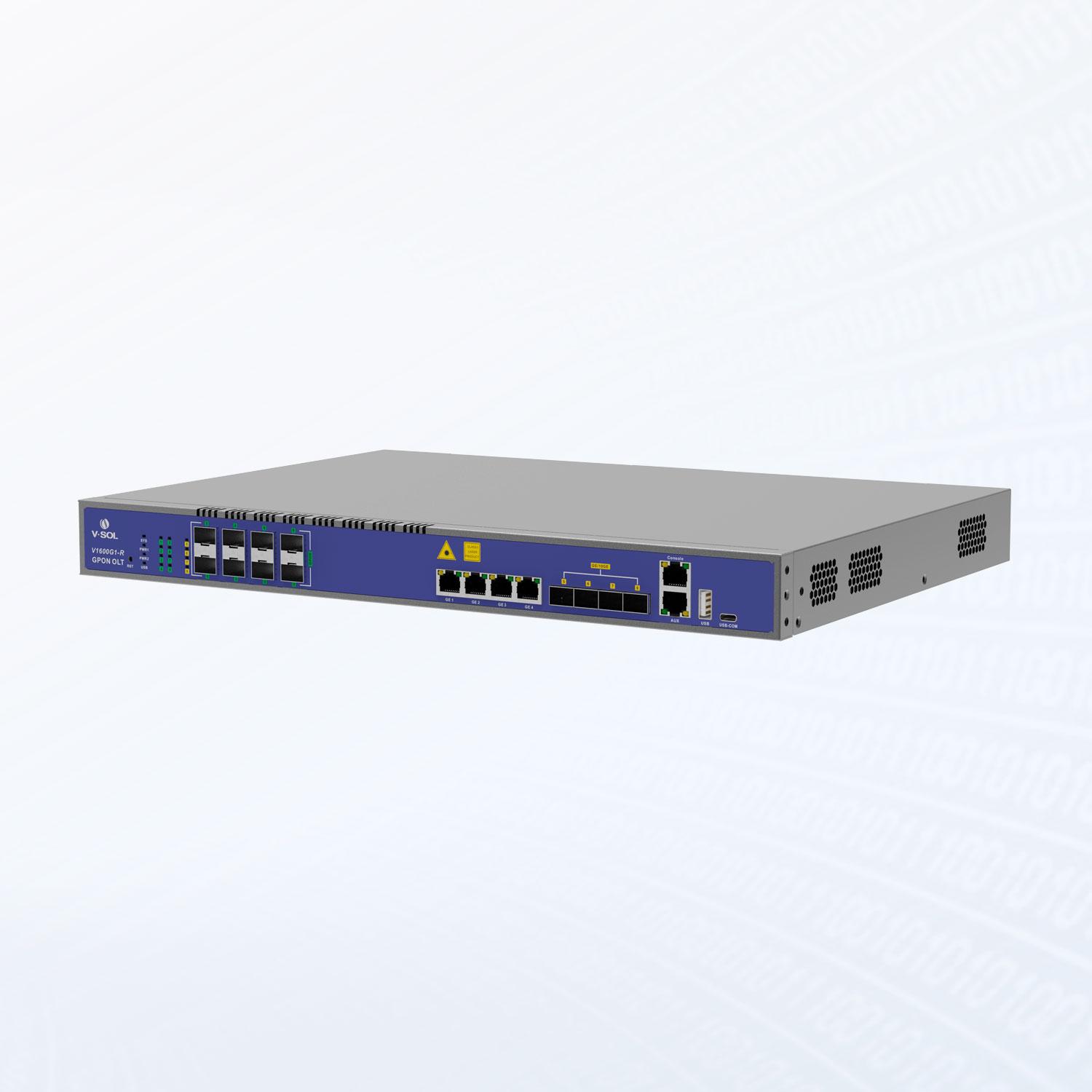

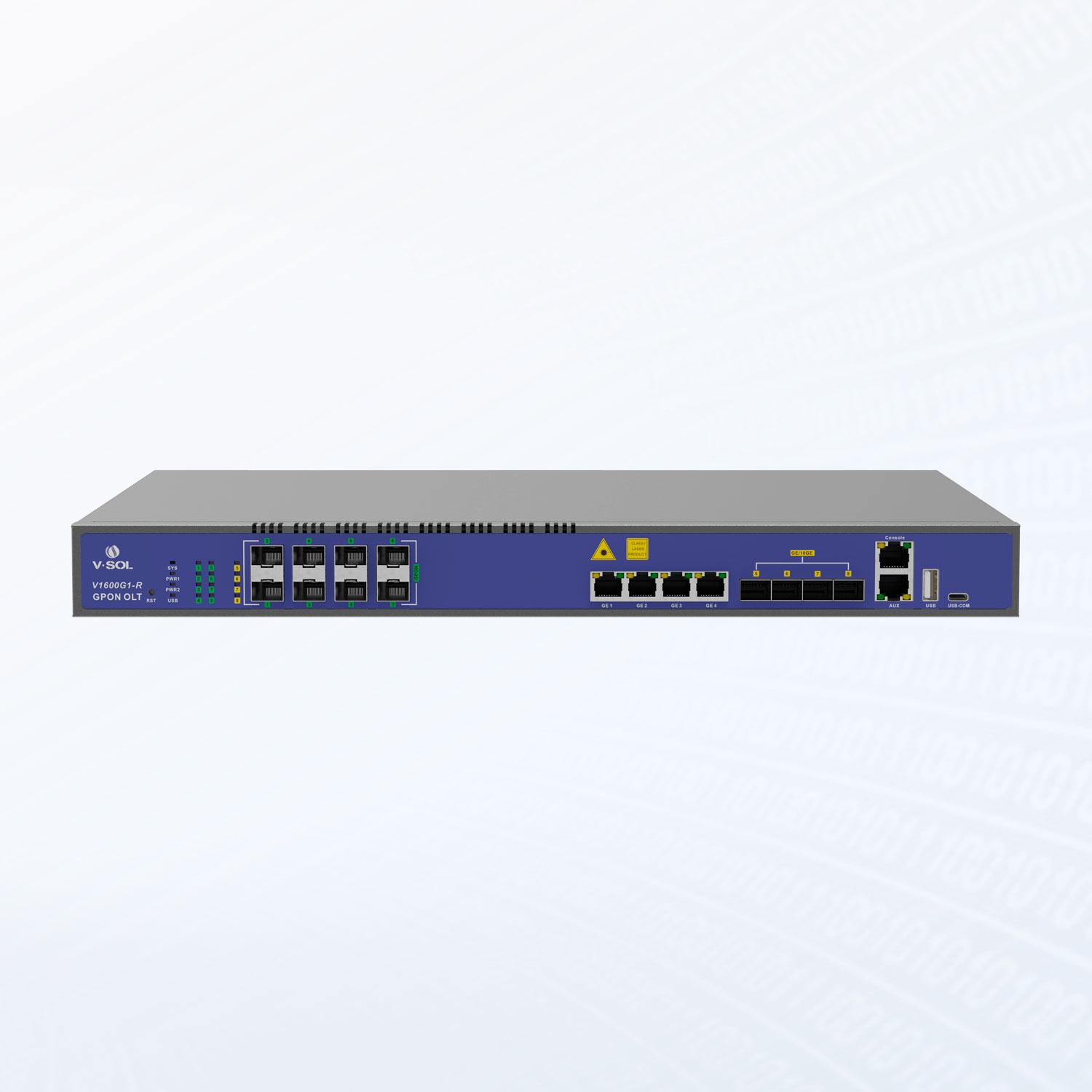

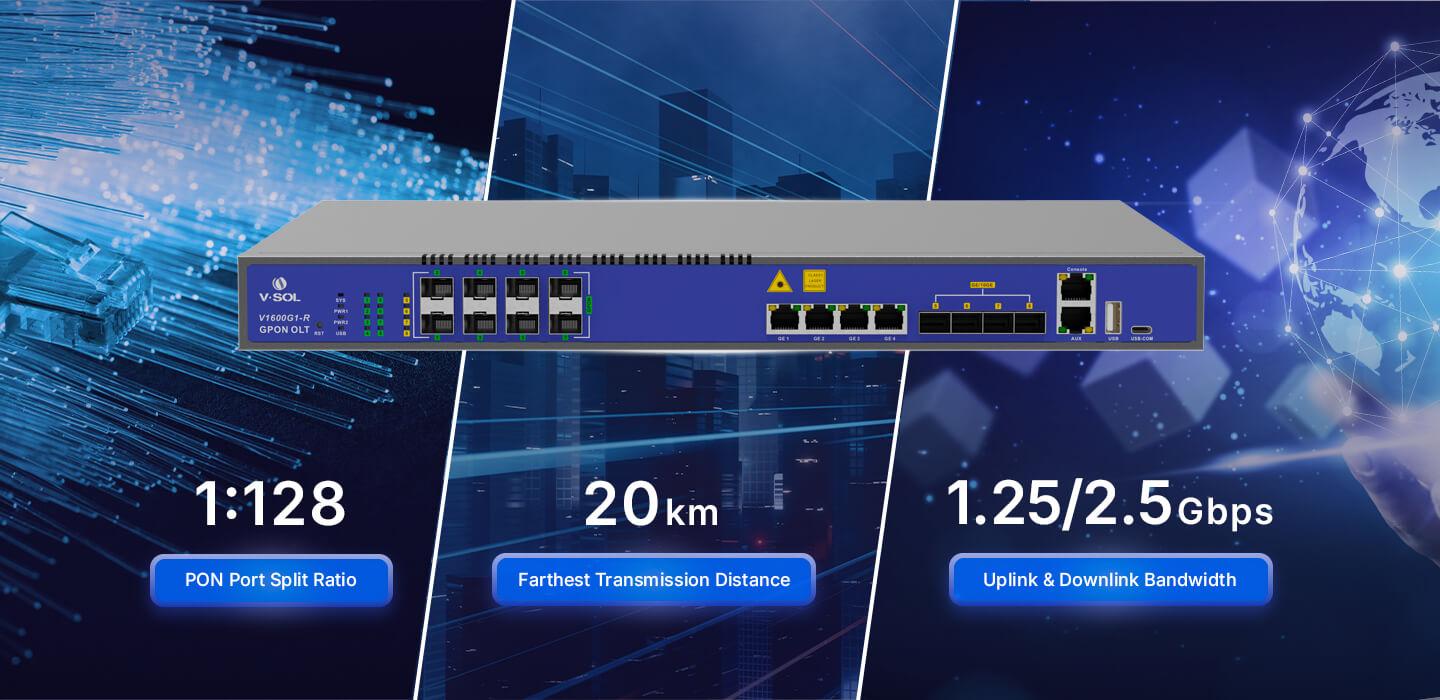

8 Port GPON OLT

Item

V1600G1-R

Chassis

Rack

1U 19Inch Standard Box

Uplink Port

QTY

8

RJ45(GE)

4

SFP(GE)/SFP+(10GE)

4

GPON Port

QTY

8

Physical Interface

SFP Slots

Max splitting ratio

1:128

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0, 1*Type-C USB (for console)

Backplane Bandwidth (Gbps)

240

Port Forwarding Rate (Mpps)

124.992

PON Port Specification

Transmission Distance

20KM

GPON port speed

Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength

TX 1490nm, RX 1310nm

Connector

SC/UPC

Fiber Type

9/125μm SMF

Supported PON module level

Class B+, C, C+, C++, C+++, C++++

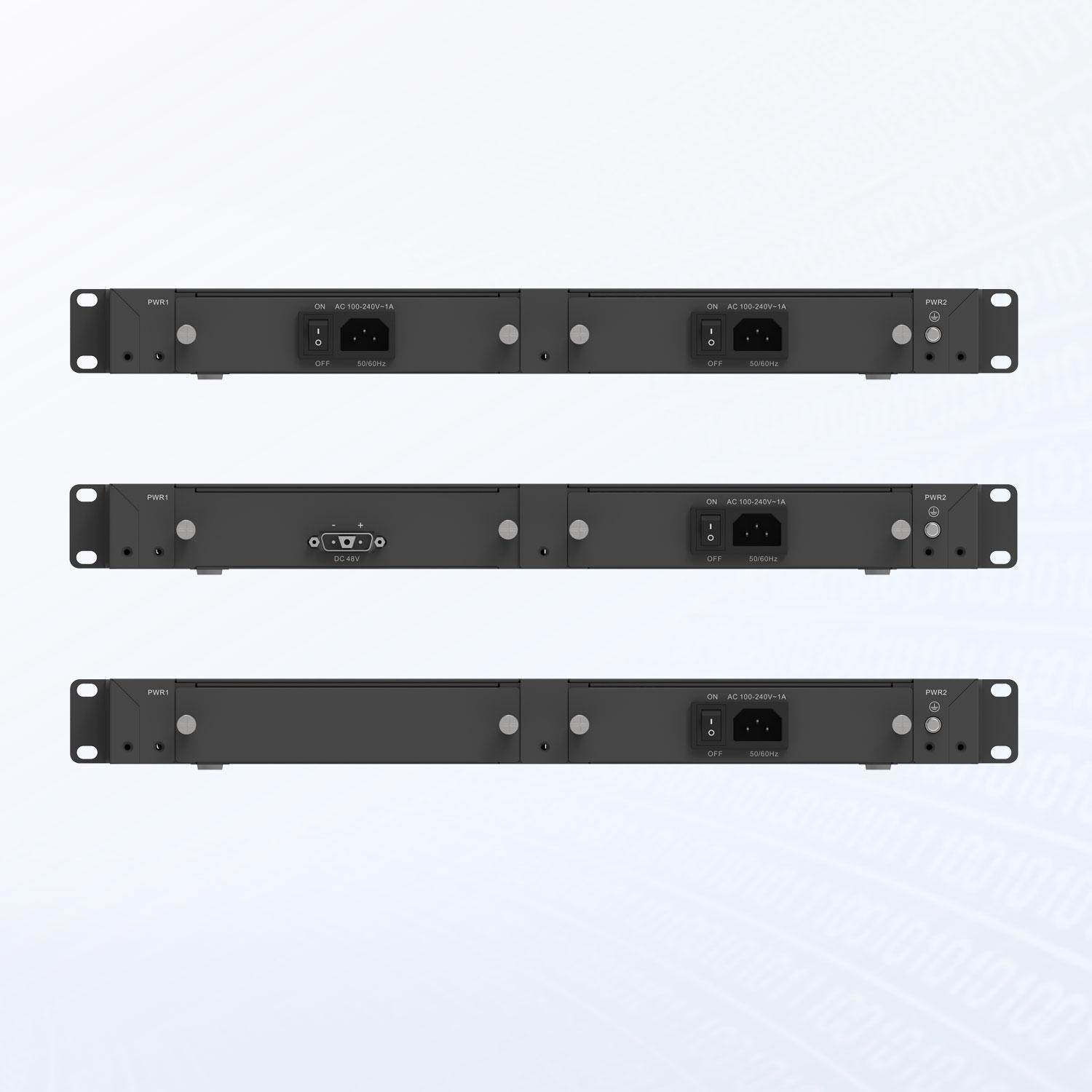

Power Supply

AC

Working Voltage Range: 100~240V, Rated Voltage: 110V/220V

DC

Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V

Management Mode

EMS, WEB, SNMP, Telnet, CLI
